10A,120V 250V single-phase two-stage enhanced Electrical Noise
Filter, Medical AC Power Line Noise Filter
| Item | Power line Filter |
| Model | Power line Filter YB-D/F |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115V/250V |
| Rated Current | 1~10A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
| MOQ | 50pcs |
| Price | USD1~5/Meter |
| Lead Time | 5~15 weekday |
Features:
-- Designed 2 stage enhanced filtering to prevent the power supply
may produce interference to the device
-- Various terminal options allow you to select
-- There are a variety of parts and combinations to meet different
customer's EMC tests
-- Customized products according to customer's requirements.
Typical Applications:
-- Electrical and electronic equipment
-- Medical equipment
-- Building automation
-- Office automation and datacom equipment
Rule of Nomination:
YB 21 D3 -
10A - Q/W
( 5 )
¦
¦
¦
¦
¦ ¦
circuit
case current connection
optional
Tabulates:
| | Rated Current
@40°C
|
Terminal Options* | Leakage current 250V/50Hz
| Electrical Schematic
| Rated Voltage(V) | Operating Frequency(Hz) |
| Model No. |
| | | |
| YB21E4-1A | 1A~4A | Q | S | W | <0.8mA | Fig.1 | 115/250V | 50/60Hz |
| YB21E4-6A | 6A | Q | S | W | Fig.1 |
| YB21E4-8A | 8A | Q | S | W | Fig.1 |
| YB21E4-10A | 10A | Q | S | W | Fig.1 |
| YB21E4-15A | 15A | Q | S | - | Fig.1 |
| YB21D1-1A | 1A~4A | Q | - | W | Fig.1 |
| YB21D1-6A | 6A | Q | - | W | Fig.1 |
| YB21D2-6A | 6A | Q | S | W | Fig.1 |
| YB21D2-8A | 8A | Q | S | W | Fig.1 |
| YB21D2-10A | 10A | Q | S | W | Fig.1 |
| YB21D2-15A | 15A | Q | S | - | Fig.1 |
| YB21D3-8A | 8A | Q | S | W | Fig.1 |
| YB21D3-10A | 10A | Q | S | W | Fig.1 |
| YB21D3-15A | 15A | Q | S | - | Fig.1 |
| YB21D4-10A | 10A | Q | S | W | Fig.1 |
| YB21D4-15A | 15A | Q | S | - | Fig.1 |
| YB21D4-20A | 20A | Q | S | - | Fig.1 |
| YB21D5-15A | 15A | Q | S | - | Fig.1 |
| YB21D5-20A | 20A | Q | S | - | Fig.1 |
| YB21D5-30A | 30A | - | S | - | Fig.1 |
| YB21D6-20A | 20A | - | S | - | Fig.1 |
| YB21D6-30A | 30A | - | S | - | Fig.1 |
| YB21F1-20A | 20A | - | S | T | Fig.1 |
| YB21F1-30A | 30A | - | S | T | Fig.1 |
| YB21F2-30A | 30A | - | S | T | Fig.1 |
| YB21F2-40A | 40A | - | S | T | Fig.1 |
| YB21F2-50A | 50A | - | S | T | Fig.1 |
| YB21F3-50A | 50A | - | S | T | Fig.1 |
Medical Type Tabulates:
| | Rated Current
@40°C
| Terminal Options
| Medical equipment
5 | Leakage current 250V/50Hz | Electrical Schematic
| Rated Voltage(V) | Operating Frequency(Hz) |
| Model No. |
| | | |
| YB21E4-1A-x(5) | 1A~4A | Q | S | W | 5 | <5μA | Fig.2 | 115/250V | 50/60Hz |
| YB21E4-6A-x(5) | 6A | Q | S | W | 5 | Fig.2 |
| YB21E4-8A-x(5) | 8A | Q | S | W | 5 | Fig.2 |
| YB21E4-10A-x(5) | 10A | Q | S | W | 5 | Fig.2 |
| YB21E4-15A-x(5) | 15A | Q | S | W | 5 | Fig.2 |
| YB21D1-1A-x(5) | 1A~4A | - | - | W | 5 | Fig.2 |
| YB21D1-6A-x(5) | 6A | - | - | W | 5 | Fig.2 |
| YB21D2-6A-x(5) | 6A | Q | S | W | 5 | Fig.2 |
| YB21D2-8A-x(5) | 8A | Q | S | W | 5 | Fig.2 |
| YB21D2-10A-x(5) | 10A | Q | S | W | 5 | Fig.2 |
| YB21D2-15A-x(5) | 15A | Q | S | - | 5 | Fig.2 |
| YB21D3-8A-x(5) | 8A | Q | S | W | 5 | Fig.2 |
| YB21D3-10A-x(5) | 10A | Q | S | W | 5 | Fig.2 |
| YB21D3-15A-x(5) | 15A | Q | S | - | 5 | Fig.2 |
| YB21D4-10A-x(5) | 10A | Q | S | W | 5 | Fig.2 |
| YB21D4-15A-x(5) | 15A | Q | S | - | 5 | Fig.2 |
| YB21D4-20A-x(5) | 20A | Q | S | - | 5 | Fig.2 |
| YB21D5-15A-x(5) | 15A | Q | S | - | 5 | Fig.2 |
| YB21D5-20A-x(5) | 20A | Q | S | - | 5 | Fig.2 |
| YB21D5-30A-x(5) | 30A | - | S | - | 5 | Fig.2 |
| YB21D6-20A-x(5) | 20A | Q | S | - | 5 | Fig.2 |
| YB21D6-30A-x(5) | 30A | - | S | - | 5 | Fig.2 |
| YB21F1-20A-x(5) | 20A | Q | S | T | 5 | Fig.2 |
| YB21F1-30A-x(5) | 30A | - | S | T | 5 | Fig.2 |
| YB21F2-30A-x(5) | 30A | - | S | T | 5 | Fig.2 |
| YB21F2-40A-x(5) | 40A | - | S | T | 5 | Fig.2 |
| YB21F2-50A-x(5) | 50A | - | S | T | 5 | Fig.2 |
| YB21F3-50A-x(5) | 50A | - | S | T | 5 | Fig.2 |
*Q: Fast-on 6.35x0.8mm
S: Screw lug
W: UL1015 18awg
Electrical schematic:
Fig.1
Fig.2

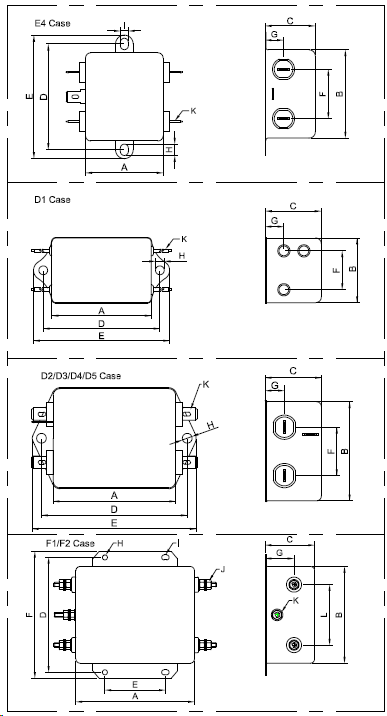

Mechanical Dimension(Unit: mm)
| Case | E4 | D1 | D2 | D3 | D4 | D5 | F1 | F2 | Tolerances |
|
| A | 44.5 | 51 | 51 | 63 | 63 | 73 | 72 | 98 | ±1 |
|
| B | 50.5 | 33 | 51 | 51 | 51 | 56 | 65 | 80 | ±1 |
|
| C | 30 | 29 | 21 | 29 | 38 | 45 | 39 | 41 | ±1 |
|
| D | 61.5 | 60 | 63 | 75 | 75 | 87 | 75 | 95 | ±0.15 |
|
| E | 70.5 | 68 | 72 | 85 | 85 | 98 | 45 | 50 | ±1 |
|
| F | 28 | 20 | 27 | 25 | 27 | 30 | 35 | 50 | ±0.5 |
|
| G | 10.5 | 10 | 10 | 10 | 15.5 | 16 | 22 | 24 | ±0.5 |
|
| H | 6 | 4.5 | 4.5 | 5 | 4.5 | 4.5 | 4.2 | 4.2 | ±0.15 |
|
| I | 4.5 | | | | | | 4.2*6.2 | 4.2*6.2 | ±0.15 |
|
| J | | | | | | | M4/M6 | M4/M6 | |
|
| K | 6.3*0.8 | 18AWG | 6.3*0.8 | 6.3*0.8 | 6.3*0.8 | 6.3*0.8 | M4 | M4 | ±0.15 |
|
| L | | | | | | | 35 | 50 | ±2 |
|

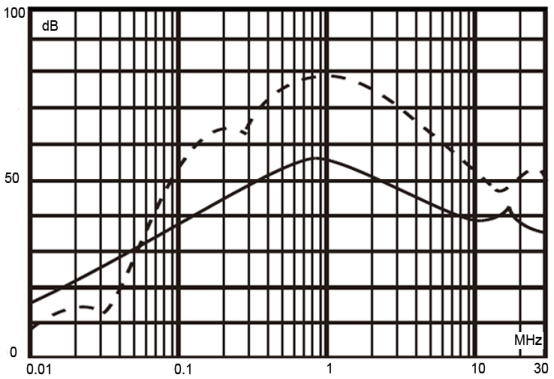

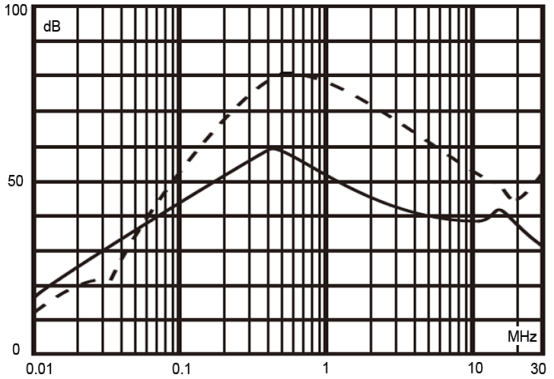

Insertion loss table(In 50ohm system according IEC/CISPR No.17)
Common mode
--------
differential mode
1A
3A
6A
15A
The factory pictures:
The quality certifications:
The packing pictures:
Packing Specification:
CTN: 56.5*28.5*20.5 cm 80pcs/CTN
RFQ:
Q: What are the main products of your company?
A: IEC inlet socket EMI filter, single-phase filter, Three-phase
RFI filter, house appliance noise filter, Medical equipment filter,
inver/converter EMC filter, etc.
Q: How is the quality of your product?
A: All our products have pass UL, TUV, CE, ROHS, ISO9001 approval.
which ensures the quality of the product.
Q: What are services available for pre-batch orders?
A: Free samples and EMC technical rectification services are
supplied before-sale
Q: What are services available after-sale?
A: Free replacement within three-month, free maintenance within
six-year, life-long maintenance.
Q: What facilities do you have?
A: We have our own laboratory and production base to establish
large-scale production.
Q: What the delivery time for 1000pcs of EMI FILTER?
A: Normally 15-20 days, but we can coordinate for a better delivery
time if it is urgent.
