1.IEC Socket EMI Filter Single Phase EMI Filter 15A Rated Currrent
For Medical Equipment
2.Product Details
| Name | IEC Socket EMI Filter YB-A Series |
| YBX Model | YB11A2-15A-Q |
| Transfer Function | Low Pass |
| Output mode | Fast speed terminal |
| Frequency | 50/60HZ |
| Composition | Inductor, Capacitor, Coil, Resistor |
| Input Impedance | 50Ω |
| Rated Voltage | 115/250VAC |
| Rated Current | 1~15A |
| Environmental Temperature | 40°C |
| Temperature Range | -25℃~+85℃ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 250VAC/60HZ 2uA Max |

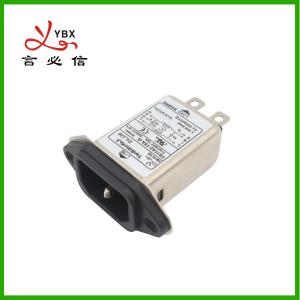

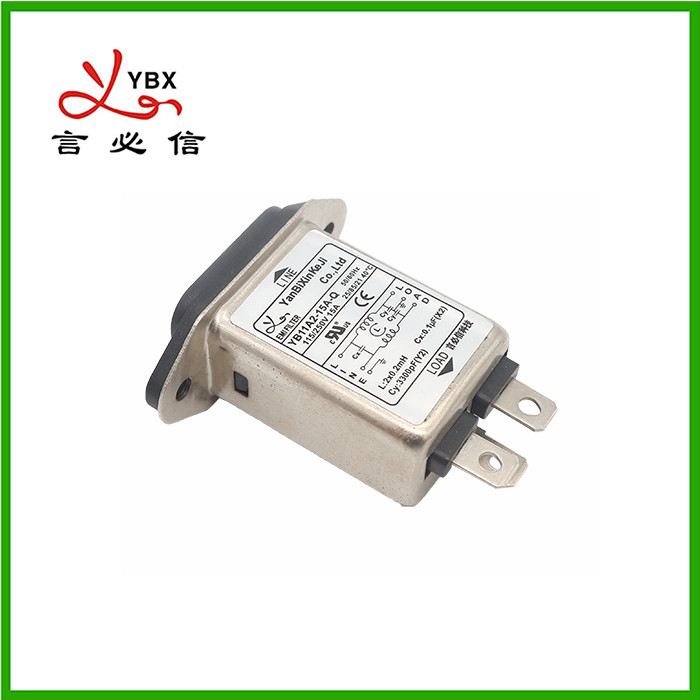

Product Picture:

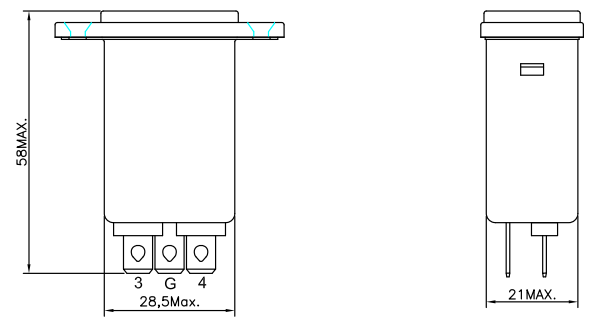

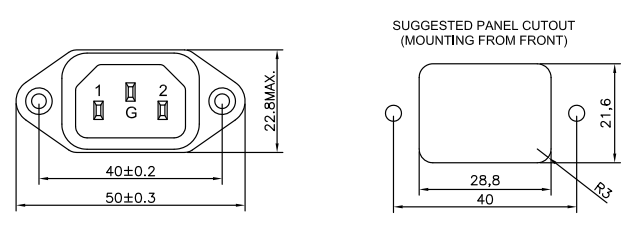

Dimensional Drawing:

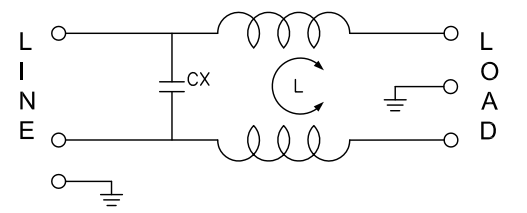

Electrical schematic:
3.Application Filed
--LED lighting equipment
--Computer supporting equipment
--Electronic equipment
--Household electrical equipment
--Fitness equipment
--Mechanical and electrical products
4.About The Company
Shenzhen Yanbixin Technology Co., Ltd. was established in 2008, 14
years focus on EMC & EMI power filter research and development,
production and sales.
After more than ten years of efforts, our products have been
certified and patented by CUL/UL, TUV, CQC, CE, CB, ENEC, ROHS,
REACH, etc. There are many products with complete specifications,
and for quality assurance, they are strictly produced according to
GJB9001C-2017 military standard system standards.
Product models are abundant, a wide range of applications, welcome
to consult!
5.Our Strengths
--After years of efforts of the company's personnel, products
successively obtained the cUL,TUV,CQC, CE, ROSH certifications.
--We have a professional R&D team; our aims is we won't let
customers spend any extra money!
--National high-tech enterprises, brand assurance, reliable
quality, and we have the relevant product certifications.
--We cooperate with top scientific research laboratories to provide
free EMC rectification technical support, samples; and free
conduction test.
6.Multiple certifications
We have a full range of product certifications, such as ISO9001,
cUL, UL, CQC, CE, CE, ROHS, etc., which are trusted by our
customers.
Please tell me the certification requirements you need, we will do
our best to meet your requirements.
7. FAQ
Q1:What is the price of the product?
A: Our price is negotiable according to the model and customer's
consumption
Q2: Are you a factory or a trader?
A: We are a manufacturer of EMI filters with 14 years of production
experience.
Q3: Do you offer free samples?
A: We can provide free samples of the products in stock, but the freight should be paid by the buyer.
Q4: How about the payment terms?
A: We usually require T/T in advance. If the amount is more than
5000USD, we can do a 30% T/T deposit, a 70% T/T deposit before
shipment, and a balance against shipment. And we also accept the
L/C, Western Union, Paypal, etc.
Q5:What's the delivery time?
A: The sample is usually 5-10 working days, and the bulk is 15-30
working days.
