YB11A5-6A-Q Plug In EMI Filter 6A Single Socket Filter For Refrigerator
YB11A5-6A-Q IEC Inlet Filter:
The IEC EMI inlet filter is a passive electronic component designed
to filter electromagnetic interference (EMI) from the power supply
entering an electronic device.Our Power Inlet filters come in a variety of sizes and
configurations to accommodate different types of electronic
devices. Its common current is: 1A,3A,6A,8A,10A, can be customized higher
current, common voltage is :115V/250V. They may also include additional features such as power entry
modules, fuses, switches to provide additional protection for
electronic devices.
Technical Specification:
| Item | Emi Power Filter |
| Model | YB11A5-6A-Q(R) |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 125VAC 250VAC |
| Rated Current | 1A 3A 6A 8A10A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 115VAC/50HZ 0.2mA Max |
| MOQ | 200pcs |
| Price | USD1~2/Meter |
| Lead Time | 5~15 weekday |
Features Of IEC Inlet Filter:
1.Excellent performance/compact structure
2.Optional medical versions((R5) type)
3.Quick connect(6.35*0.8mm),solder or wire
4.High performance and high attenuation power filters with IEC 320
socket
5.(R5) types comply with the requirements of IEC/EN60601-1 for
safety clearance, leakage current and high hipot testing.
6.There are a variety of parts and combinations to meet different
customer's EMC tests.
Typical Applications:
-- Specially designed for LCD and PDP TV,medical
applications,general electrical appliances.
-- Medical equipment
-- Test and measurement equipment
-- Small and medium-sized machines and household equipment
Rule of Nomination:
| YB | 11 | A5 | - | 6A | - | Q |
| | | | | | | | | | | | |
| Single Phase | Circuit | Dimension | | Current | | Output Connection |
| | 11:11 circuit | A5 | | 3A : 3 amp | | Q:fast-on tab 250 |
| | | | | 6A : 6 amp | | W:wire |
| | | | | 8A :8amp | | S:Solder Lug Terminals |
*Q: Fast-on 6.35x0.8mm
S: solder 4.0x0.8mm
W: UL1015 18awg
Tabulates:
| Model No. | Rated Current
@40°C | Terminal Options* | Bleeder resistor (optional) | G (optional) | Leakage current 250V/50Hz | Electrical Schematic | Rated Voltage | Operating Frequency (Hz) |
| |
| | | |
| YB11A1-1A | 1A | Q | S | W | - | - | <0.8mA | Fig.1 | 115/250V | 50/60Hz |
| YB11A1-2A | 2A | Q | S | W | - | - | Fig.1 |
| YB11A1-3A | 3A | Q | S | W | - | - | Fig.1 |
| YB11A1-4A | 4A | Q | S | W | - | - | Fig.1 |
| YB11A1-6A | 6A | Q | S | W | - | - | Fig.1 |
| YB11A1-8A | 8A | Q | S | W | - | - | Fig.1 |
| YB11A1-10A | 10A | Q | S | W | - | - | Fig.1 |
| YB11A1-15A | 15A | Q | S | W | - | - | Fig.1 |
| YB11A2-1A | 1A | Q | S | W | - | - | Fig.1 |
| YB11A2-2A | 2A | Q | S | W | - | - | Fig.1 |
| YB11A2-3A | 3A | Q | S | W | - | - | Fig.1 |
| YB11A2-4A | 4A | Q | S | W | - | - | Fig.1 |
| YB11A2-6A | 6A | Q | S | W | - | - | Fig.1 |
| YB11A2-8A | 8A | Q | S | W | - | - | Fig.1 |
| YB11A2-10A | 10A | Q | S | W | - | - | Fig.1 |
| YB11A2-15A | 15A | Q | S | W | - | - | Fig.1 |

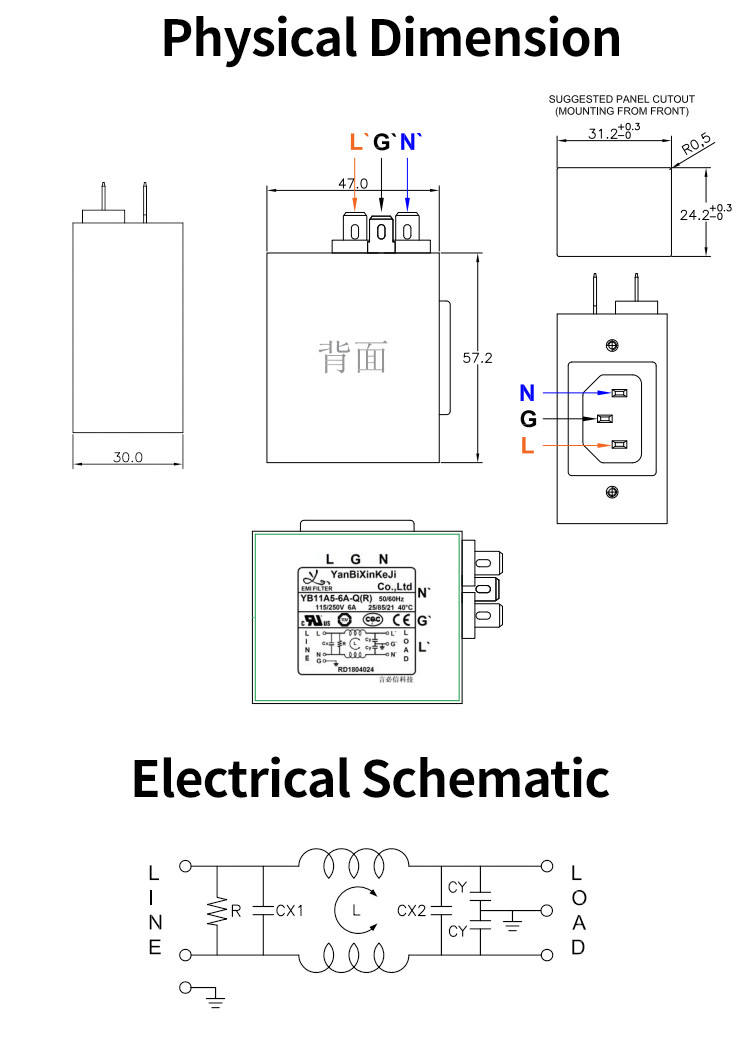

YB11A5-6A-Q Physical Dimensions & Electrical Diagrams:
| Case | A | B | C | D | E | F | G | H | I | J | K | L | M | N |
|
| A1 | 58 | 28.5 | 21 | 50 | 40 | 22.4 | 12.7 | 11.8 | 13.5 | 3.2 | 6.35*0.8 | | | |
|
| A2 | 58 | 28.5 | 21 | 52 | 40 | 25 | 12.7 | 11.8 | 13.5 | 3.2 | 6.35*0.8 | | | |
|
Tolerances
| ±1 | ±1 | ±1 | ±1 | ±0.15 | ±1 | ±0.5 | ±0.5 | ±0.5 | ±1 | ±0.15 | | | |
|

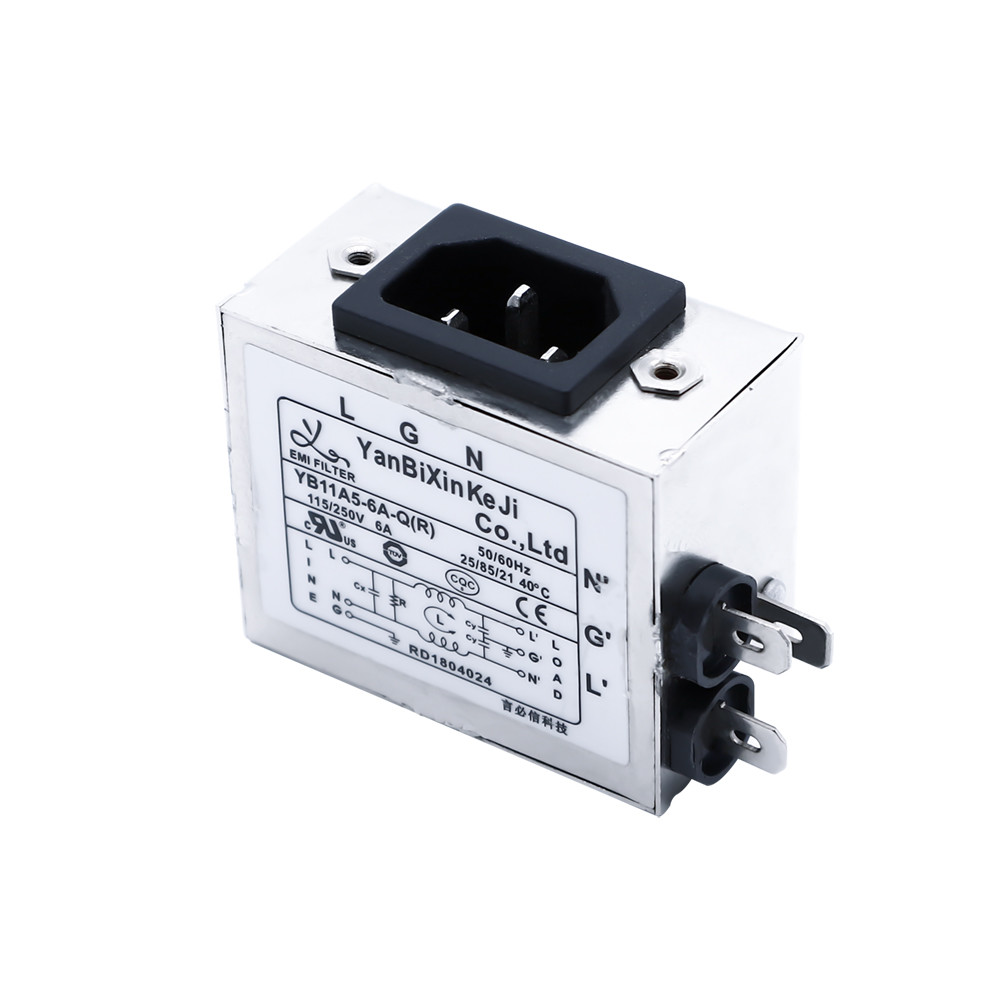

YB11A5-6A-Q EMI Filter Actual Picture:
Insertion loss table(In 50ohm system according IEC/CISPR No.17)
Production Equipment
During the production of EMI filters, we use many automated
equipments, such as: long leg tin dipping machine, wave soldering,
automatic flat labelling machine, etc., which greatly improves our
production efficiency and guarantees the delivery time for our
customers.
