250V 10A D Series Single Phase Filter Dual Stage EMI Filter Wire
Output Filter For Automotive
Single Phase Filter:
EMI Filter Specification:
| Item | Single Phase Filter |
| Model | YB22D2-10A-W |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 150K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115VAC 250VAC |
| Rated Current | 1A~20A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 115VAC/50HZ 0.8mA Max |
| MOQ | 100pcs |
| Price | USD1~2/Meter |
| Lead Time | 5~15 weekday |
Features:
-- The rated current can be offered from 1 to 20 amps.
-- Various output selections such as Fast-on termianl, Wire ande M4
screw terminal
-- Optional medical version R(5) type
-- The compact size can be applied to various situations.
-- There are a variety of parts and combinations to meet different
customer's EMC tests
Typical Applications:
1. Electrical and electronic equipment
2. Medical equipment
3. Datacom equipment
4. Office automation equipment
Rule of Nomination of EMI Filter
| YB | 22 | D2 | - | 10A | - | W |
| | | | | | | | | | | | |
| Single Phase | Circuit | Dimension | | Current | | Output Connection |
| | 22:22 circuit | D2 | | 3A : 3 amp | | Q:fast-on tab 250 |
| | | | | 6A : 6 amp | | W:wire |
| | | | | 10A : 10 amp | | S:M4 screw |
*Q: Fast-on 6.35x0.8mm
S: Screw lug
W: UL1015 18awg
Filter Selection Table:
| Model No. | Rated Current
@40°C | Terminal Options* | Leakage current 250V/50Hz | Electrical Schematic | Rated Voltage(V) | Operating Frequency(Hz) |
|
| | | |
| YB22D1-1A | 1A | Q | - | W | <0.8mA | Fig.1 | 115/250V | 50/60Hz |
| YB22D1-2A | 2A | Q | - | W | Fig.1 |
| YB22D1-3A | 3A | Q | - | W | Fig.1 |
| YB22D1-4A | 4A | Q | - | W | Fig.1 |
| YB22D1-6A | 6A | Q | - | W | Fig.1 |
| YB22D2-6A | 6A | Q | S | W | Fig.1 |
| YB22D2-8A | 8A | Q | S | W | Fig.1 |
| YB22D2-10A | 10A | Q | S | W | Fig.1 |
| YB22D2-15A | 15A | Q | S | - | Fig.1 |

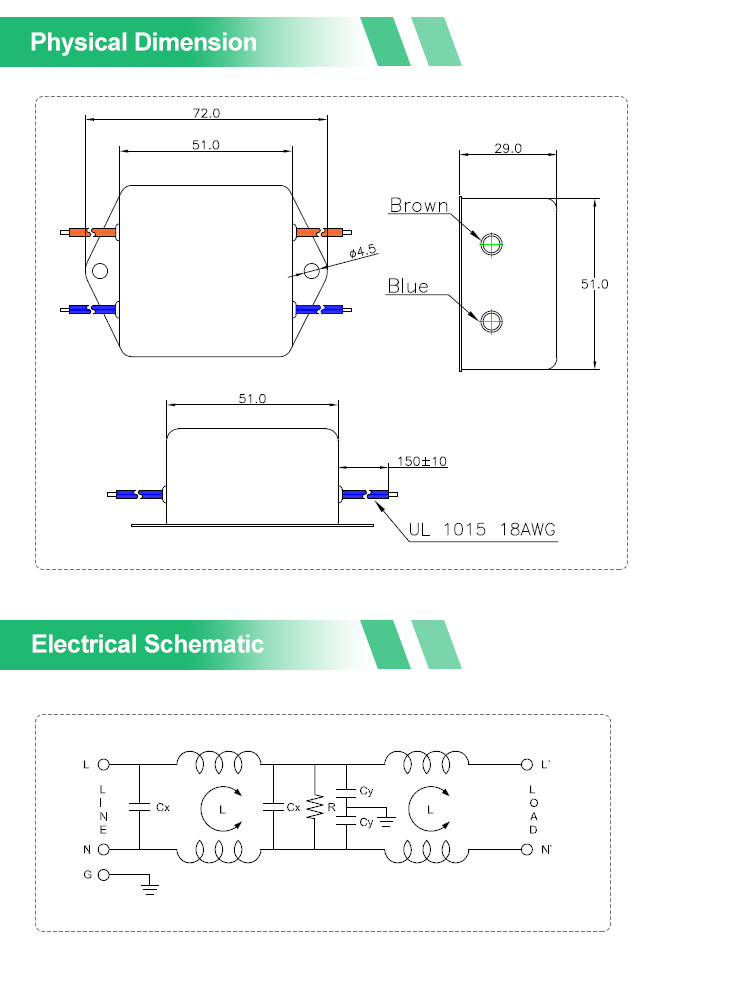

YB22D2-10A-W Product Picture:
EMI Filter Series
Choose us, we have the most complete range of EMI filters,
including IEC Inlet Filter, Power Entry Module Filter, Single Phase
Filter and Three Phase Filter, etc. Please contact us, we have
professional technicians to help you solve the EMI and EMC
problems.
