Fast On Terminal Out Three Phase EMI Filter YX91D4 10A Four Line Filter For Photovoltaic System

Shenzhen Yanbixin Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Fast On Terminal Out Three Phase EMI Filter YX91D4 10A Four Line Filter For Photovoltaic System

Brand Name : YBX

Model Number : YX91D4-10A-Q

Certification : UKCA CE ENEC

Place of Origin : China

Product name : Three Phase Four Line Filter

Rated voltage : 115/250VAC

Rated current : 1A-20A

Nominal center frequency : 150KHz~30MHz

Insertion loss : 30-100dB

Package type : Panel Mount

Contact Now

Fast-on Terminal Out EMI Filter YX91D4 10A Three Phase Four Line Filter For Photovoltaic System



YBX offers the widest selection of EMC/EMI filters in the world. Standardized and customer-specific solutions - with full engineering support - help to meet international compliance standards and improve the immunity and safety of electrical and electronic equipment.



Technical Specification:



ItemThree Phase Four Line Filter
ModelYX91D4-10A-Q
Transfer FunctionHigh Pass
Package TypeSurface Mount
Nominal Center Frequency150K-30MHZ
Insertion Loss60~90dB
Input Impedance50Ω
Rated Voltage115V/250V
Rated Current1~30A
Environmental Temperature40°C
Temperature Range25 / 085 / 21
Operating Frequency50/60HZ
Line to Line1450VDC
Line to Ground2250VDC
Maximum Leakage Current440VAC/60HZ 8mA Max



Features:



-- Rated currents from 1 to 10A



-- General purpose filtering performance



-- Optional medical versions((R5) type)



-- Customized products according to customer's requirements.



Typical Applications:



-- Electrical and electronic equipment



-- Medical equipment



-- Datacom equipment



-- Office automation equipment



Filter Selection Table:



Part No.CaseRated Currents (A)Output Connections
YX91D4-3AD43Fast-on terminal
YX91D4-6AD46
YX91D4-10AD410M4/M6/M8 Screw
YX91D4-15AD415
YX91D4-20AD420Wire



*Q: Fast-on 6.35x0.8mm S: Screw lug W: UL1015 18awg



Tabulates:



Model No.Rated Current
@40°C
Terminal Options*Leakage current 440V/50HzElectrical SchematicRated Voltage(V)Operating Frequency(Hz)

YX91G1-3A3AQST<5.0mAFig.1250/440V50/60Hz
YX91G1-6A6AQSTFig.1
YX91G1-10A10AQSTFig.1
YX91G2-15A20AQSTFig.1
YX91G2-20A30A-STFig.1
YX91G2-25A30A-STFig.1
YX91G2-30A40A-STFig.1
YX91G3-35A40A-ST<7.0mAFig.1
YX91G5-50A50A-STFig.1
YX91G5-60A60A-STFig.1
YX91G5-80A80A-ST<10.0mAFig.1
YX91G4-100A100A-STFig.1
YX91G6-150A150A-ST<15.0mAFig.1
YX91G6-200A200A-STFig.1



Electrical Schematic & Mechanical Dimension(Unit: mm)



Fast On Terminal Out Three Phase EMI Filter YX91D4 10A Four Line Filter For Photovoltaic System

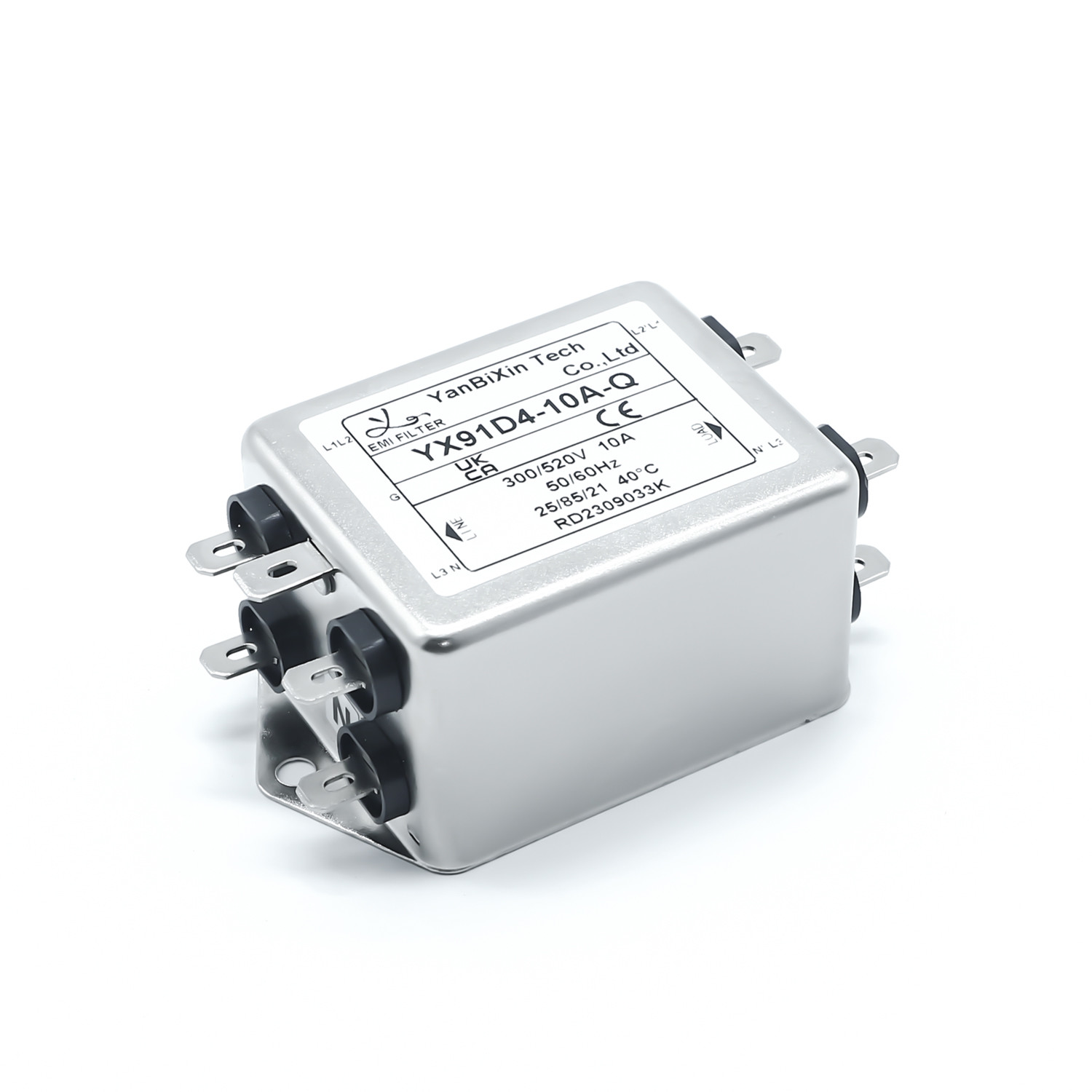

YX91D4-10A-Q EMI Filter Picture:



Fast On Terminal Out Three Phase EMI Filter YX91D4 10A Four Line Filter For Photovoltaic System


Insertion loss table(In 50ohm system according IEC/CISPR No.17)



Fast On Terminal Out Three Phase EMI Filter YX91D4 10A Four Line Filter For Photovoltaic System
