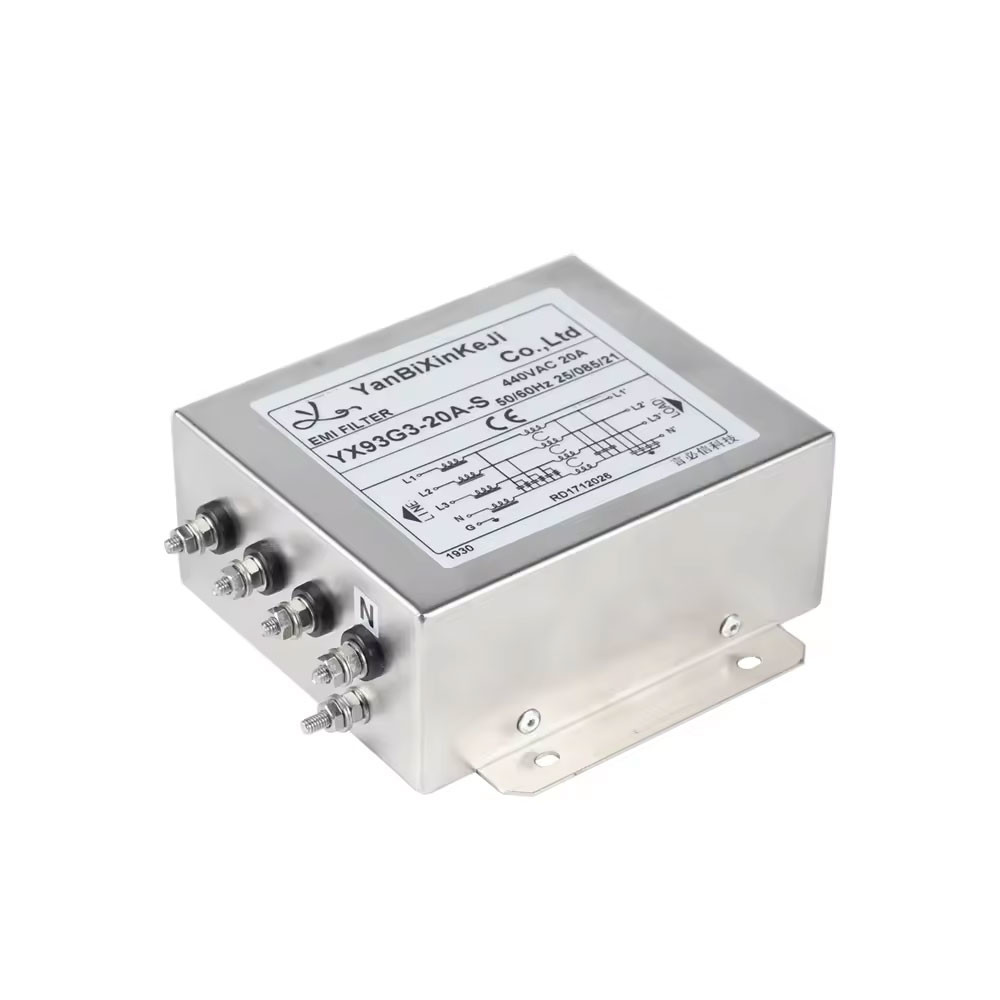

Product Description:
This product is designed for a rated current of 1A to 800A and a
rated voltage of 380V/440VAC. It operates within a temperature
range of 40°C and at a frequency of 50/60HZ. The line-to-line
withstand voltage is 1450VDC, while the line-to-ground withstand
voltage is 2250VDC or 2000VAC. The product is certified with
ISO9001, CE, and ROHS. The minimum order quantity is 50 pieces, and
the goods can be shipped through the port of Shenzhen.
For further details or purchasing inquiries, please feel free to
contact the YBX brand for additional support and services.
| Item | EMI EMC filter |
| Transfer Function | Low pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Rated Voltage | 380V/440V |
| Rated Current | 1~10A |
Features:
- Voltage interference prevention: Effectively mitigates voltage
interference to ensure stable power supply.
- Industry-standard EMC solution for three-phase PDS filtering:
Complies with industry standards for electromagnetic compatibility,
providing reliable filtering for three-phase power distribution
systems.
- Customizable products according to customer requirements: Offers
flexibility in product customization to meet specific needs and
specifications.Typical Applications:
Typical Applications:
- Photovoltaic systems and industrial applications: Suitable for use
in solar energy systems and various industrial settings requiring
clean power supply.
- Three-phase motor drives: Ideal for powering three-phase motor
drives in machinery and equipment.
- Power conversion equipment (inverters, converters): Compatible with
energy conversion devices such as inverters and converters used in
various applications.
- Industrial automation equipment: Well-suited for powering
industrial automation equipment to ensure smooth operation and
minimal interference.
OUR ADVANTAGES
- Certifications: Fully certified with UL, cUL, TUV, CQC, ENEC, CB,
CE, ROHS, and REACH standards.
- Automation: Large-scale production capability ensures superior cost
performance.
- Fast Delivery: Efficient communication and attentive service
guarantee prompt delivery.
- Warranty: Three months of free exchange, six years of free repair,
and lifetime maintenance.
- Free Samples: Receive free technical support for EMC rectification
and test samples.
- Free Testing: Access professional test equipment for
conduction/surge/EFT mapping tests at no cost.
- Customization: Our professional R&D team offers customized
solutions tailored to specific demands.
FAQ
- What is an EMI power filter?
A: An EMI power filter is a component used to mitigate
electromagnetic interference (EMI) and reduce disturbances in a
power line. Typically constructed with inductors and capacitors,
these filters are collectively known as passive EMI power filters.
- Why do we need EMI filters?
A: Electromagnetic compatibility (EMC) is crucial for assessing the
quality of electronic products. Incorporating EMC design in power
systems enhances overall anti-interference capabilities, extends
system lifespan, and ensures safe operation. EMI filters play a
vital role in achieving good electromagnetic compatibility.
- Where should I place my EMI filter?
A: A power line or mains EMI filter should be positioned at the
power entry point of the equipment it is installed in, preventing
noise from exiting or entering the equipment. Essentially, an EMI
filter comprises capacitors and inductors.
- How does an EMI filter work?
A: EMI, or Electro-Magnetic Interference, refers to unwanted
electrical signals that can be conducted or radiated emissions.
Capacitors offer a low-impedance path to redirect high-frequency
noise away from the filter's input, either back into the power
supply or into the ground connection.
